OPTIONS FOR
SQUARE OPENINGS

Designed for standard sized square fire features, these CROSSFIRE® Brass Burners range from 60K to 450K BTUs.

Back to CROSSFIRE® Brass Burners

Original Burners

ORIGINAL CFB60
For 18" opening or larger

CFB60NG  |  CFB60LP

60K BTU Original Brass Burner

Dimensions: 5 7/8" x 7 3/8"

Recommended parts:

  • Plate: ALPL18S (square)

  • Flex Line Kit: FK1

  • Optional 3x Flexible Metal Support Collars

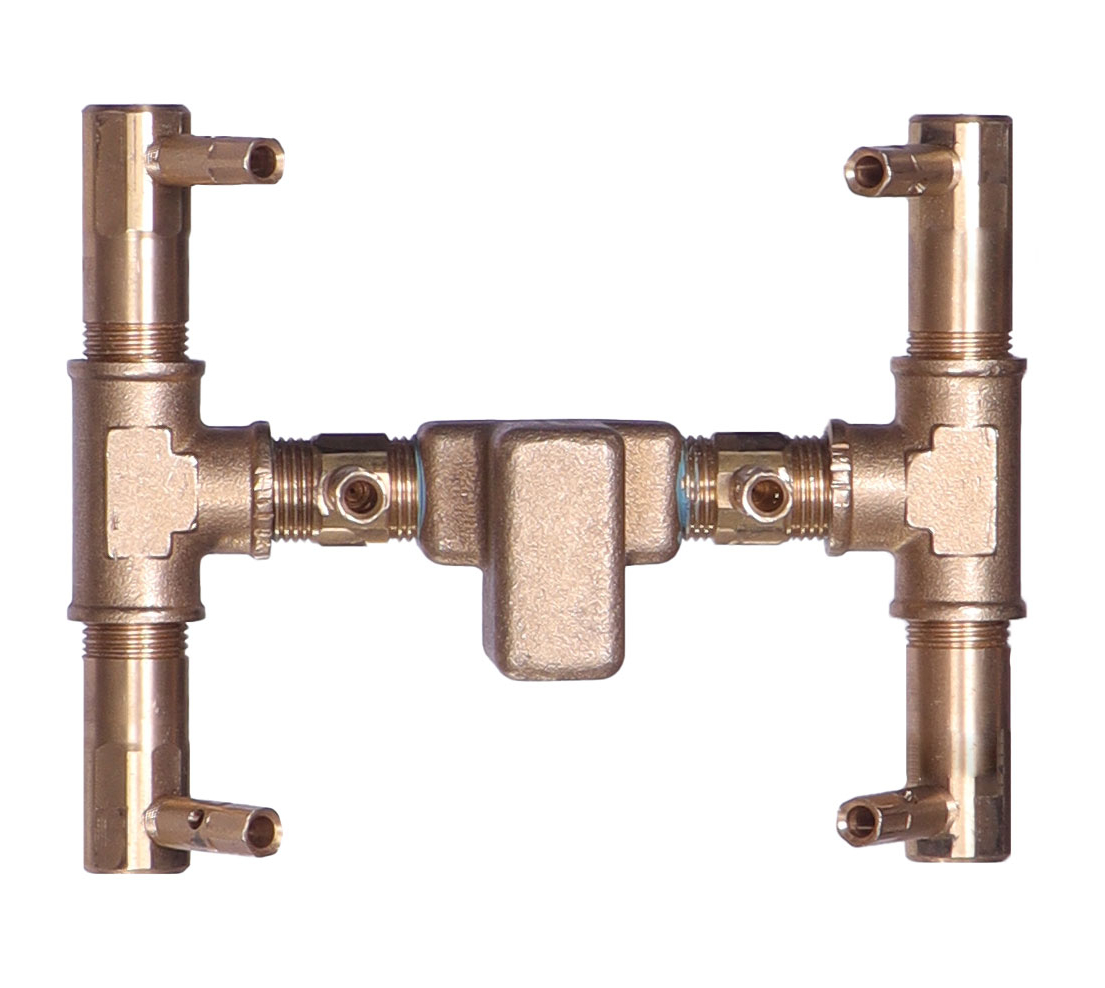

ORIGINAL CFB60XL
For 18" opening or larger


CFB60NG  |  CFB60LP

60K BTU Original Brass Burner with WATERSTOP®

Dimensions: 5 7/8" x 7 1/4"

Recommended parts:

  • Plate: ALPL18S (square)

  • Flex Line Kit: FK1

  • Optional 3x Flexible Metal Support Collars ​

ORIGINAL CFB84
For 18" opening or larger


CFB84NG  |  CFB84LP

84K BTU Original Brass Burner

Dimensions: 5 7/8" x 7 3/8"

Recommended parts:

  • Plate: ALPL18S (square)

  • Flex Line Kit: FK1

  • Optional 3x Flexible Metal Support Collars ​


ORIGINAL CFB120
For 24" opening or larger

CFB120NG  |  CFB120LP

120K BTU Original Brass Burner with WATERSTOP

Dimensions: 13 1/4" x 13"

Recommended parts:

  • Plate: ALPL24S (square)

  • Flex Line Kit: FK1

  • Optional 4x Flexible Metal Support Collars ​


ORIGINAL CFB180
For 30" opening or larger

CFB180NG  |  CFB180LP

180K BTU Original Brass Burner with WATERSTOP

Dimensions: 14 1/2" x 17 1/4"

Recommended parts:

  • Plate: ALPL30S (square)

  • Flex Line Kit: FK1

  • Optional 5x Flexible Metal Support Collars ​


ORIGINAL CFB240
For 30" opening or larger

CFB240NG  |  CFB240LP

240K BTU Original Brass Burner with WATERSTOP

Dimensions: 21 1/2" x 18 3/4"

Recommended parts:

  • Plate: ALPL30S (square)

  • Flex Line Kit: FK1

  • Optional 5x Flexible Metal Support Collars ​


ORIGINAL CFB290
For 36" opening or larger

CFB290NG  |  CFB290LP

290K BTU Original Brass Burner with WATERSTOP

Dimensions: 21 1/2" x 21 3/4"

Recommended parts:

  • Plate: ALPL36S (square)

  • Flex Line Kit: FK2

  • Optional 6x Flexible Metal Support Collars ​


ORIGINAL CFB350
For 48" opening or larger

CFB350NG  |  CFB350LP

350K BTU Original Brass Burner

Dimensions: 31" x 31 1/8"

Recommended parts:

  • Plate: ALPL48S (square)

  • Flex Line Kit: FK2

  • Optional 8x Flexible Metal Support Collars ​


ORIGINAL CFB450
For 60" opening or larger

CFB450NG  |  CFB450LP

450K BTU Original Brass Burner with WATERSTOP

Dimensions: 45 7/8" x 46"

Recommended parts:

  • Plate: ALPL60S (square)

  • Flex Line Kit: FK2

  • Optional 10x Flexible Metal Support Collars ​


Choose plates and pans

Standard and custom plate and pan options available here.

Octagonal Burners

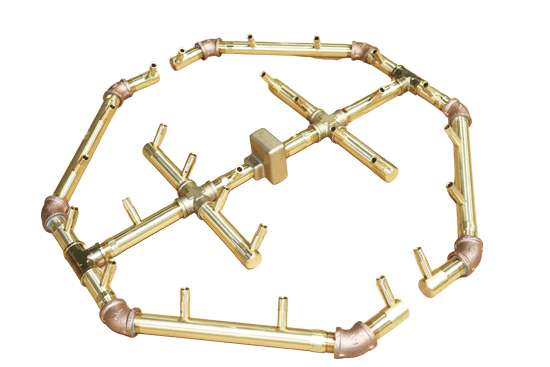

OCTAGONAL CFBO140
For 18" opening or larger

CFBO140NG  |  CFBO140LP

140K BTU Octagonal Brass Burner with WATERSTOP

Dimensions: 10 3/4" x 13 3/4"

Recommended parts:

  • Plate: ALPL18C (circle)

  • Flex Line Kit: FK1

  • Optional 3x Flexible Metal Support Collars ​


OCTAGONAL CFBO180
For 24" opening or larger

CFBO180NG  |  CFBO180LP

180K BTU Octagonal Brass Burner with WATERSTOP

Dimensions: 15 3/4" x 14 3/4"

Recommended parts:

  • Plate: ALPL24C (circle)

  • Flex Line Kit: FK1

  • Optional 4x Flexible Metal Support Collars ​


OCTAGONAL CFBO280
For 30" opening or larger

CFBO280NG  |  CFBO280LP

280K BTU Octagonal Brass Burner with WATERSTOP

Dimensions: 21 3/4" x 22 3/4"

Recommended parts:

  • Plate: ALPL30C (circle)

  • Flex Line Kit: FK2

  • Optional 5x Flexible Metal Support Collars ​


OCTAGONAL CFBO320
For 36" opening or larger

CFBO320NG  |  CFBO320LP

320K Octagonal Brass Burner with WATERSTOP

Dimensions: 25″ x 23 3/4″

Recommended parts:

  • Plate: ALPL36C (circle)

  • Flex Line Kit: FK2

  • Optional 6x Metal Support Collars​

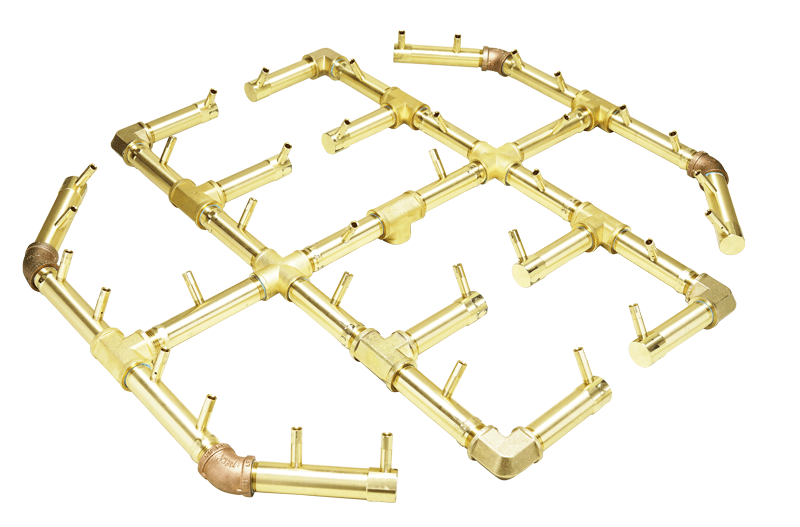

OCTAGONAL CFBO360
For 42" opening or larger

CFBO360NG  |  CFBO360LP

360K BTU Octagonal Brass Burner with WATERSTOP

Dimensions: 27.5" x 29.5"

Recommended parts:

  • Plate: ALPL42C (circle)

  • Flex Line Kit: FK2

  • Optional 7x Flexible Metal Support Collars ​


Whistle-Free Flex Lines

Whistle-Free Flex Lines and other parts can be found here.

Square Tree-Style Burners


SQUARE TREE-STYLE CFBST120
For 18" opening or larger

CFBST120NG  |  CFBST120LP

120K BTU Square Tree-Style Brass Burner with WATERSTOP
Dimensions: 9 3/4" x 10"

Recommended parts:

  • Plate: ALPL18S (square)

  • Flex Line Kit: FK1

  • Optional 4x Flexible Metal Support Collars ​


SQUARE TREE-STYLE CFBST240
For 30" opening or larger

CFBST240NG  |  CFBST240LP

240K BTU Square Tree-Style Brass Burner with WATERSTOP
Dimensions: 19 1/2" x 18"

Recommended parts:

  • Plate: ALPL24S (square)

  • Flex Line Kit: FK1

  • Optional 4x Flexible Metal Support Collars


SQUARE TREE-STYLE CFBST400
For 36" opening or larger

CFBST400NG  |  CFBST400LP

400K BTU Square Tree-Style Brass Burner with WATERSTOP

Dimensions: 27 5/8" x 24 1/4"

Recommended parts:

  • Plate: ALPL36S (square)

  • Flex Line Kit: FK2

  • Optional 4x Flexible Metal Support Collars

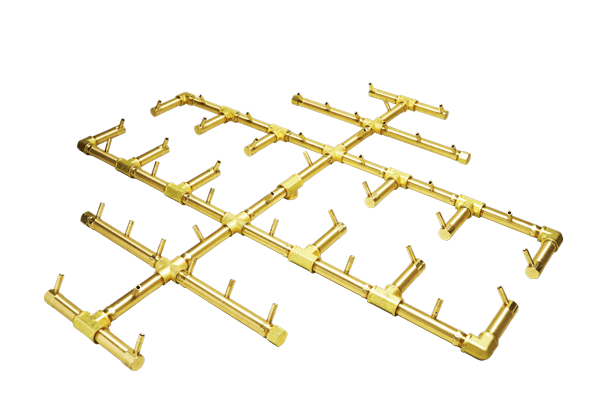

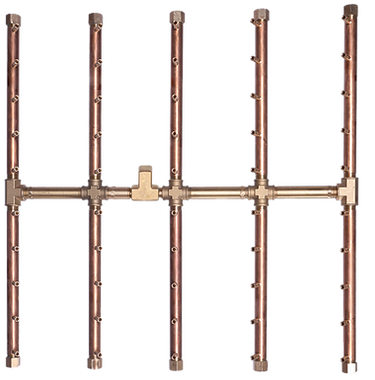

SQUARE TREE-STYLE CFBST500
For 42" opening or larger

CFBST500NG  |  CFBST500LP

500K BTU Square Tree-Style Brass Burner with WATERSTOP
Dimensions: 27 5/8" x 30 1/4"

Recommended parts:

  • Plate: ALPL42S (square)

  • Flex Line Kit: FK2

  • Optional 7x Flexible Metal Support Collars

Ted Carter Landscape_edit.jpg

Looking for something unique? In addition to standard products, Warming Trends® works with customers every day to design and manufacture truly custom fire features.

What can we design for you?
