GAS INSERT KITS FOR PAVER FIRE PITS
Warming Trends® makes it easy to install or convert a paver fire pit to gas with our Gas Insert Kits. Each kit includes a CROSSFIRE® Brass Burner which utilizes cutting-edge jet technology to produce a taller, brighter, and more natural flame – all while consuming less gas. Warming Trends®
Universal and Specialized Gas Insert Kits are designed to work with a variety of paver company block kits, including everything needed to convert your paver fire pit.
OPTIONAL IGNITION SYSTEMS
Light your Fire Feature with the simplicity of a match or choose
a fully automatic ignition system.
- Push Button Ignition (PBIK)
- Mercury Ignition System™ (MERC)
- 3 Volt (3VIK)
- Standard 24V (24VIK)
- Platinum Ignition System™

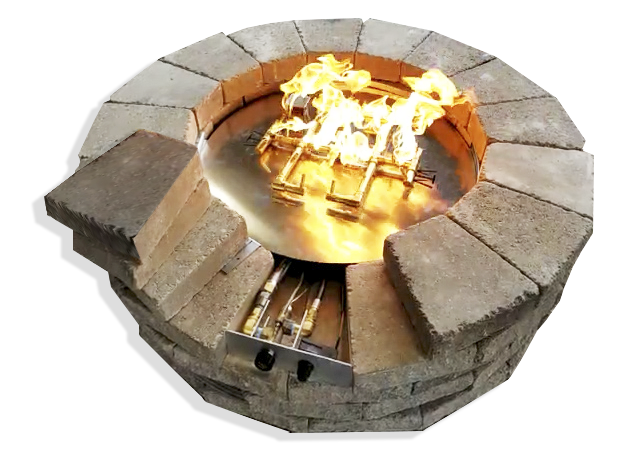

UNIVERSAL GAS INSERT KITS

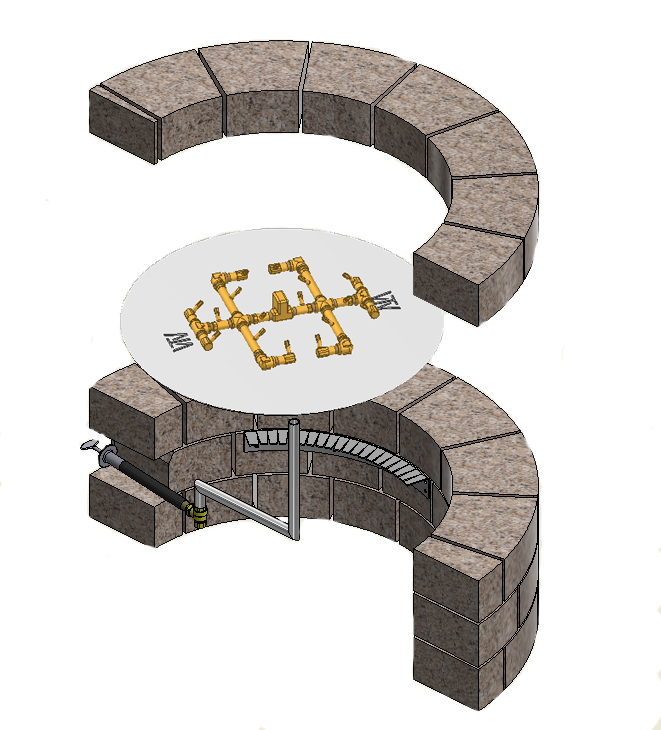

Warming Trends Universal Gas Insert Kits are designed to let you easily create a stunning fire feature in an existing or new paver block pit. Each kit includes everything needed to quickly and easily convert to a gas system.
Included in each kit:
- CROSSFIRE® Brass Burner
- Aluminum Plate
- Flex Line Kit
- Key Valve Kit
- Collars
See below for all available kits/sizes.
Kit does not include vents unless where noted. (Manufacturer recommends 18 sq. inches of ventilation on opposing sides of the fire feature.)
Kit does not include stone/enclosure.
Download our
Gas Insert Kits For Paver Fire Pits Sell Sheet
for more information.

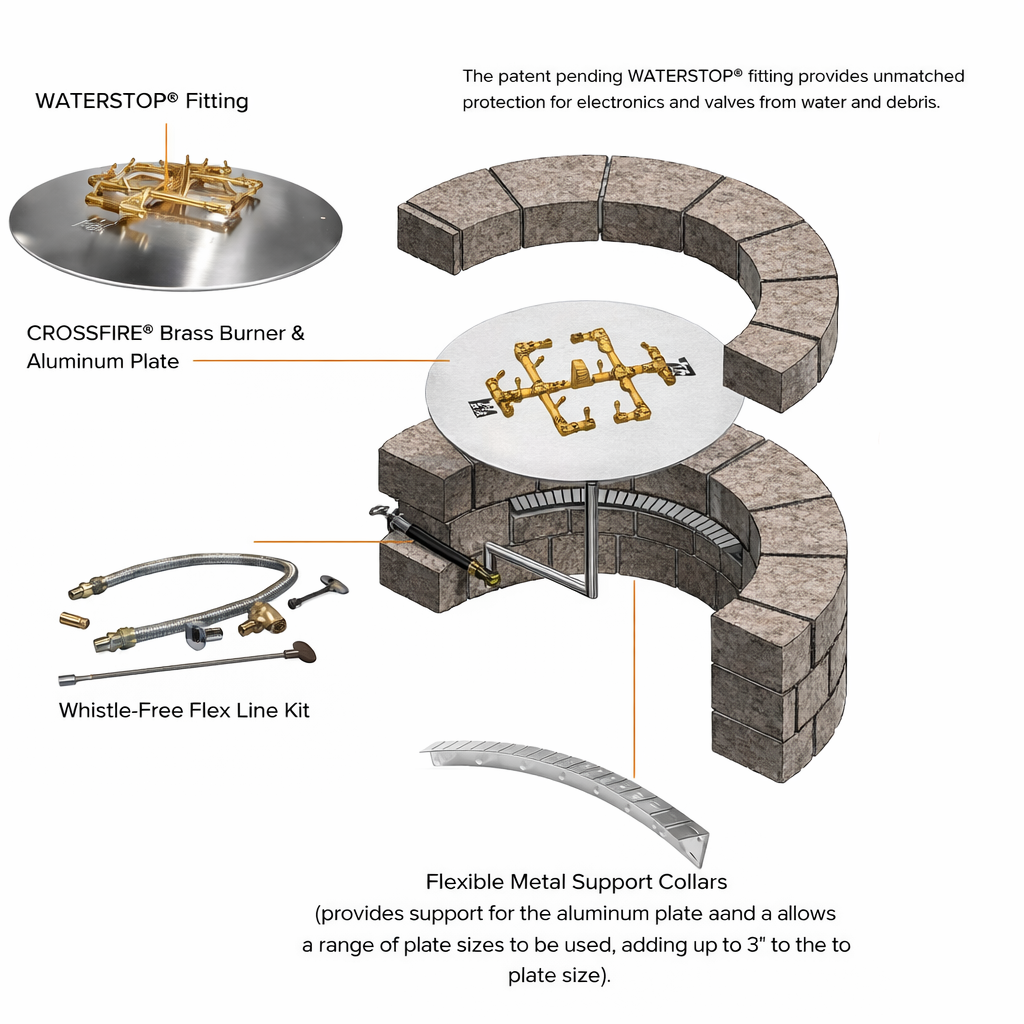

WATERSTOP® Fitting

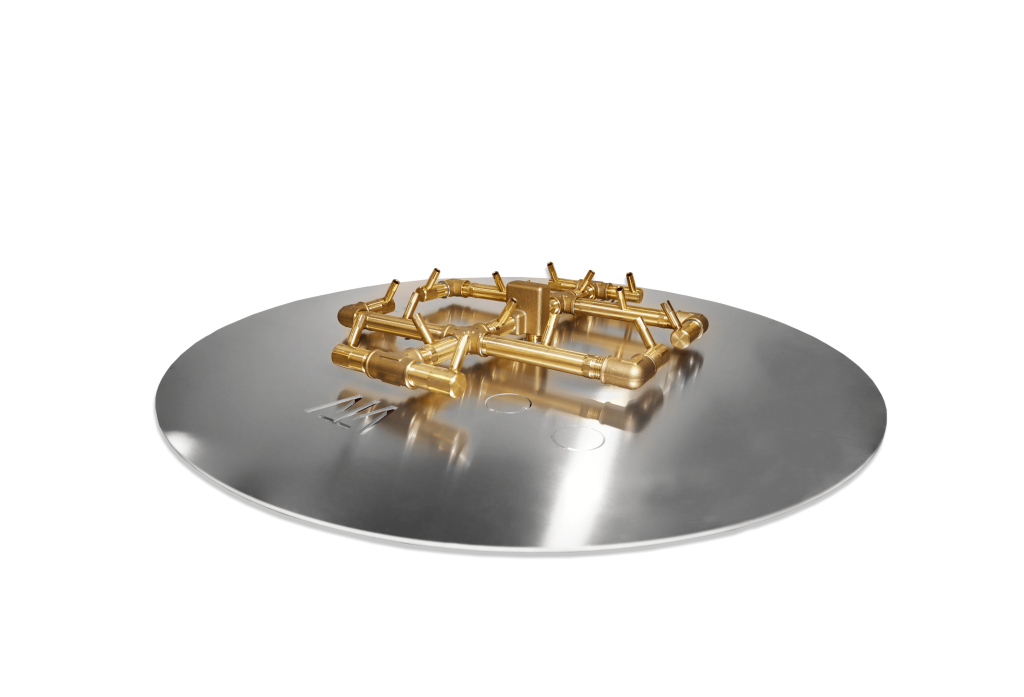

CROSSFIRE® Brass Burner & Aluminum Plate

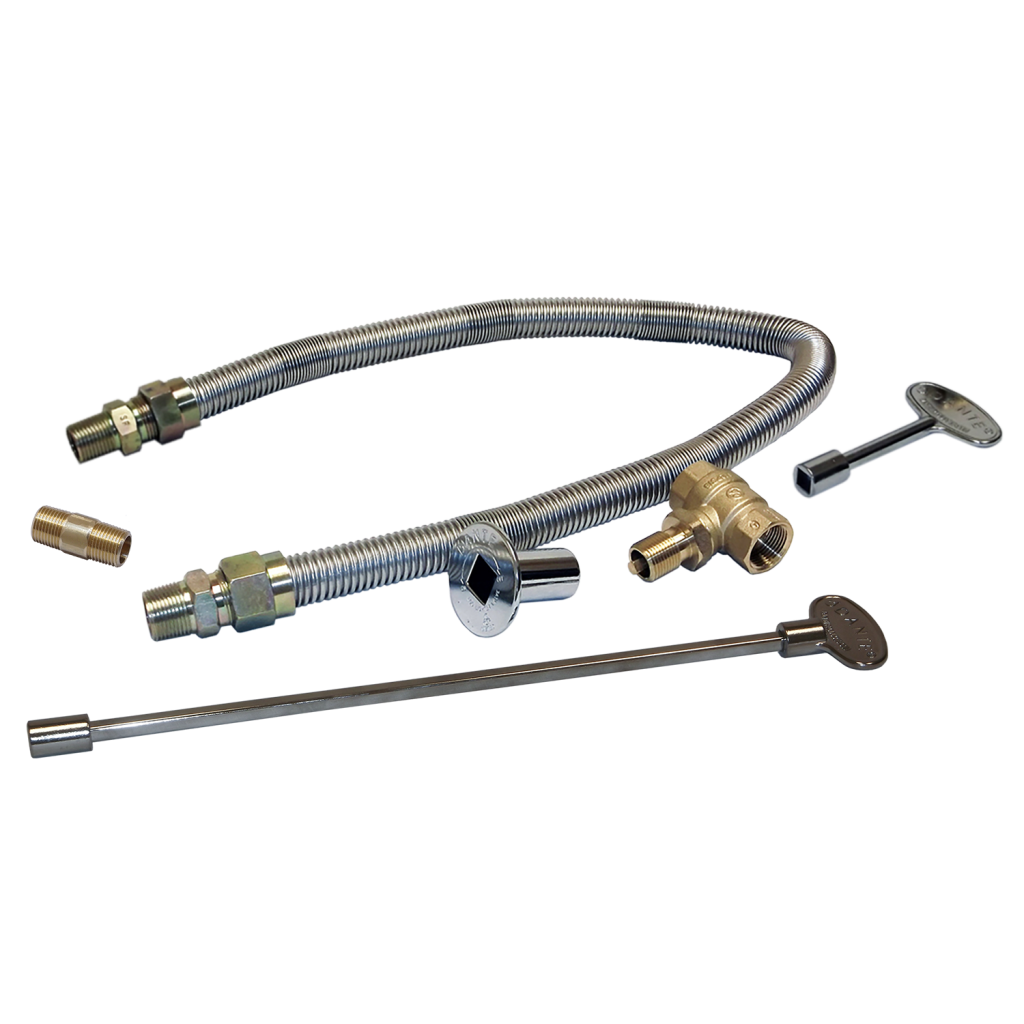

Whistle-Free Flex Line Kit

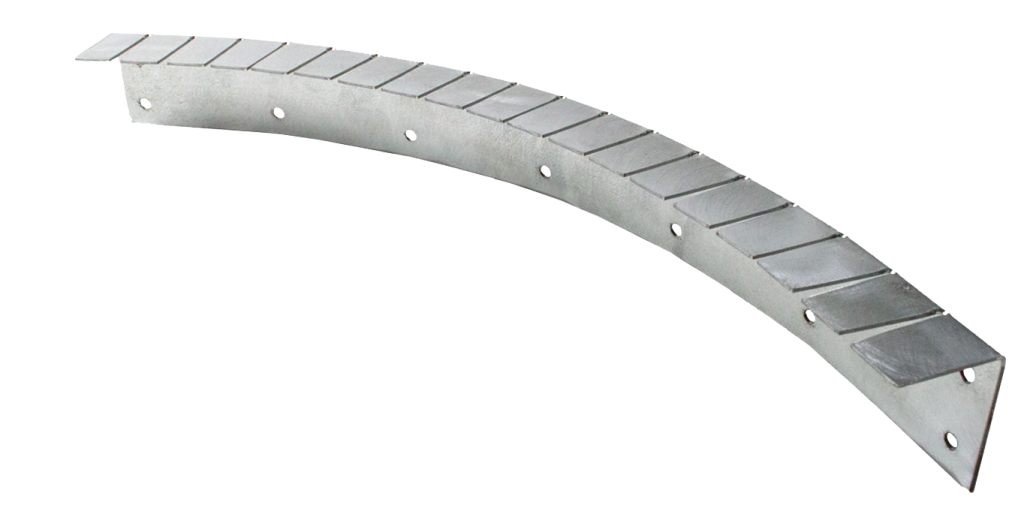

Flexible Metal Support Collars
(provides support for the aluminum plate and allows a range of plate sizes to be used, adding up to 3″ to the plate size.)
CIRCULAR OPENINGS

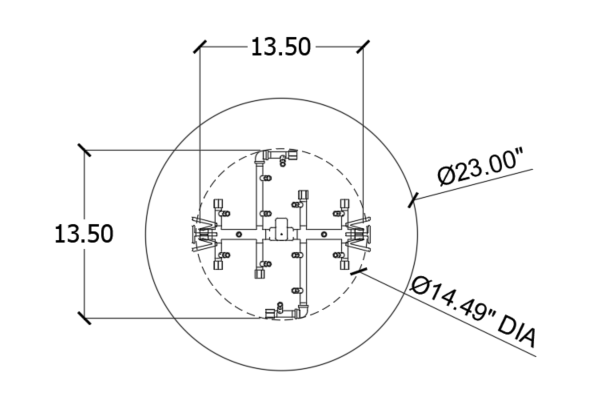

23″ – 26″ Circular Opening
UPK120C23NG | UPK120C23LP
Includes:
- CFB120 Original Brass Burner with WATERSTOP®
- 23” Circular Aluminum Plate
- Flex Line / Key Valve Kit
- Key Valve Extension
- (4) Collars

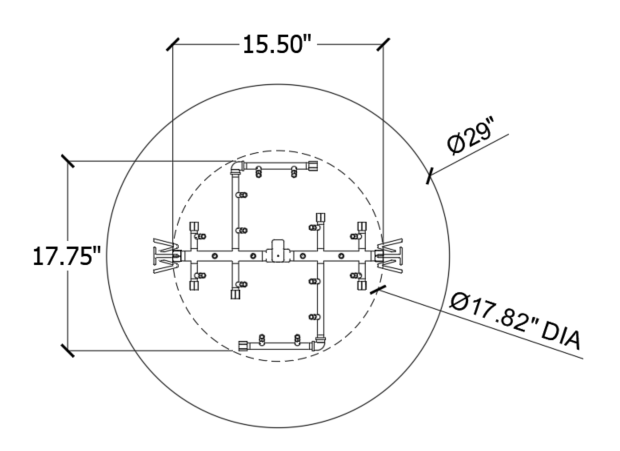

29″ – 32″ Circular Opening
UPK180C29NG | UPK180C29LP
Includes:
- CFB180 Original Brass Burner with WATERSTOP
- 29” Circular Aluminum Plate
- Flex Line / Key Valve Kit
- Key Valve Extension
- (5) Collars

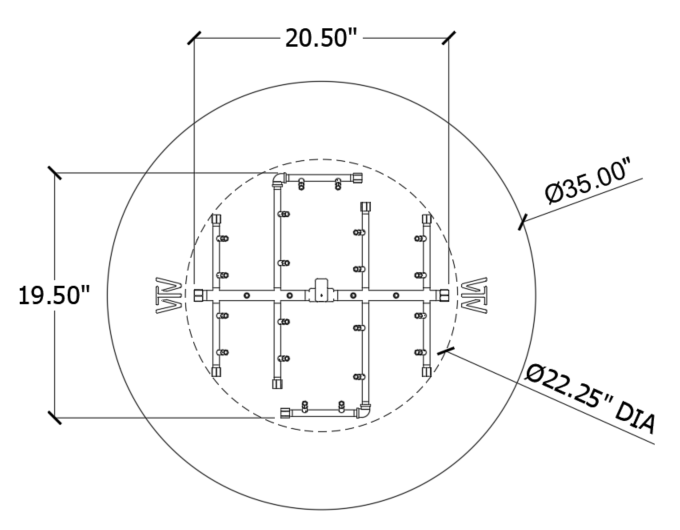

35″ – 38″ Circular Opening
UPK240C35NG | UPK240C35LP
Includes:
- CFB240 Original Brass Burner with WATERSTOP
- 35” Circular Aluminum Plate
- Flex Line / Key Valve Kit
- Key Valve Extension
- (6) Collars

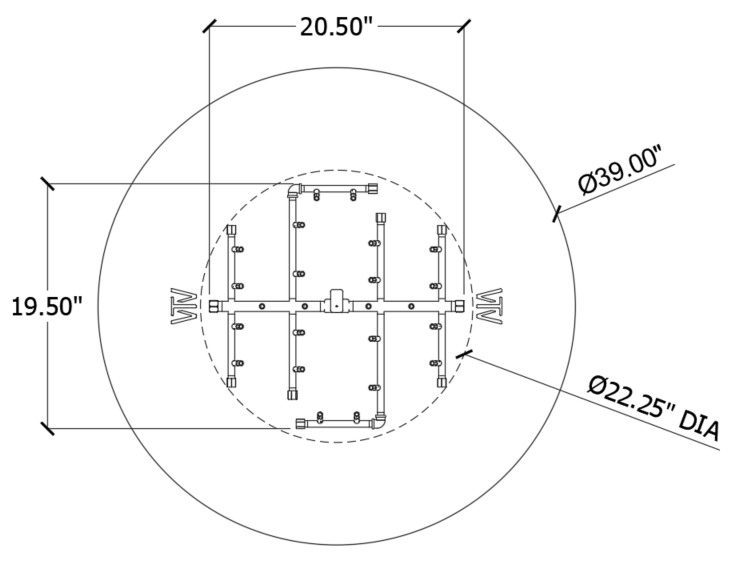

39″ – 42″ Circular Opening
UPK240C39NG | UPK240C39LP
Includes:
- CFB240 Original Brass Burner with WATERSTOP
- 39” Circular Aluminum Plate
- Flex Line / Key Valve Kit
- Key Valve Extension
- (7) Collars
SQUARE OPENINGS

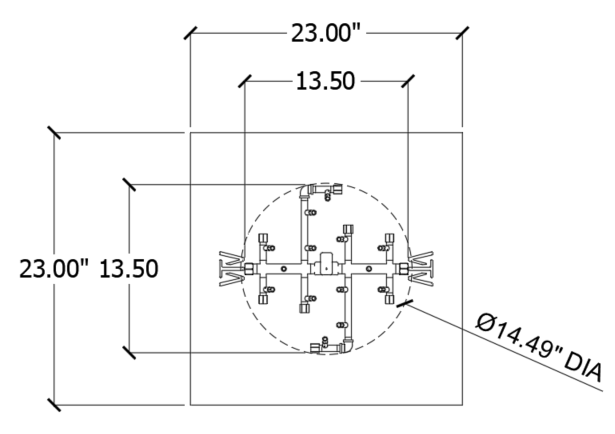

23″ – 26″ Square Opening
UPK120S23NG | UPK120S23LP
Includes:
- CFB120 Original Brass Burner with WATERSTOP
- 23” Square Aluminum Plate
- Flex Line / Key Valve Kit
- Key Valve Extension
- (4) Collars

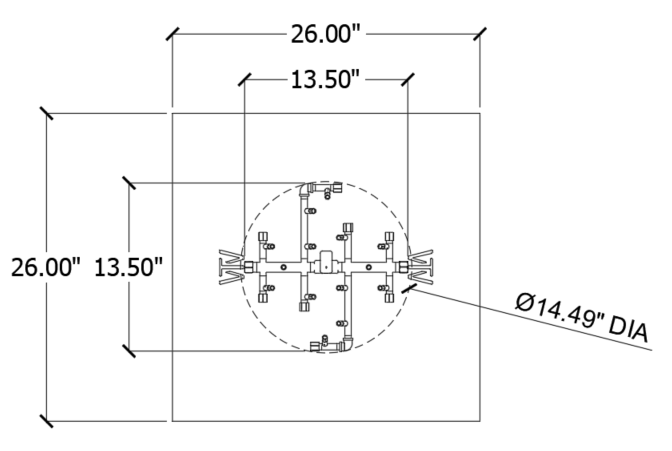

26″ – 29″ Square Opening
UPK120S26NG | UPK120S26LP
Includes:
- CFB120 Original Brass Burner with WATERSTOP
- 26” Square Aluminum Plate
- Flex Line / Key Valve Kit
- Key Valve Extension
- (4) Collars

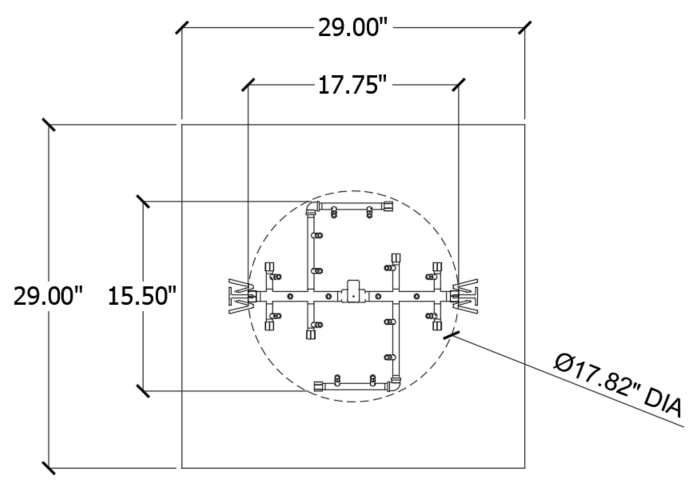

29″ – 32″ Square Opening
UPK180S29NG | UPK180S29LP
Includes:
- CFB180 Original Brass Burner with WATERSTOP
- 29” Square Aluminum Plate
- Flex Line / Key Valve Kit
- Key Valve Extension
- (5) Collars

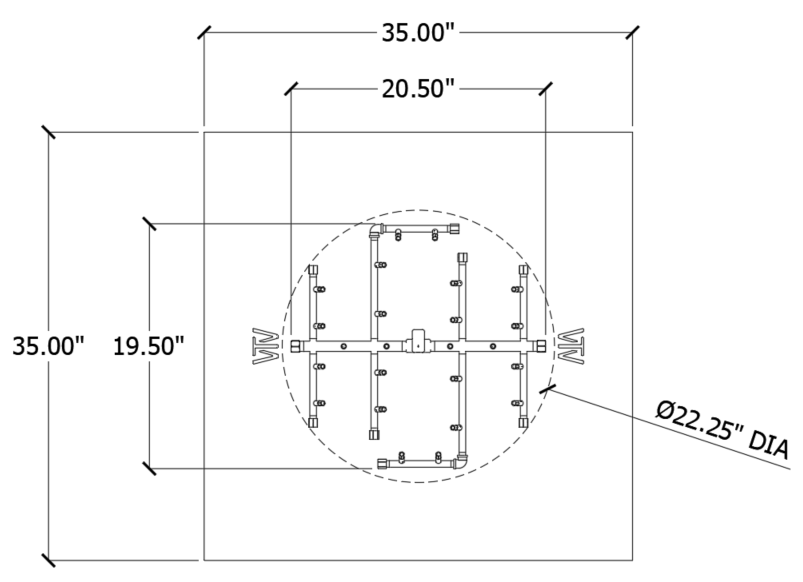

35″ – 38″ Square Opening
UPK240S35NG | UPK240S35LP
Includes:
- CFB240 Original Brass Burner with WATERSTOP
- 35” Square Aluminum Plate
- Flex Line / Key Valve Kit
- Key Valve Extension
- (6) Collars

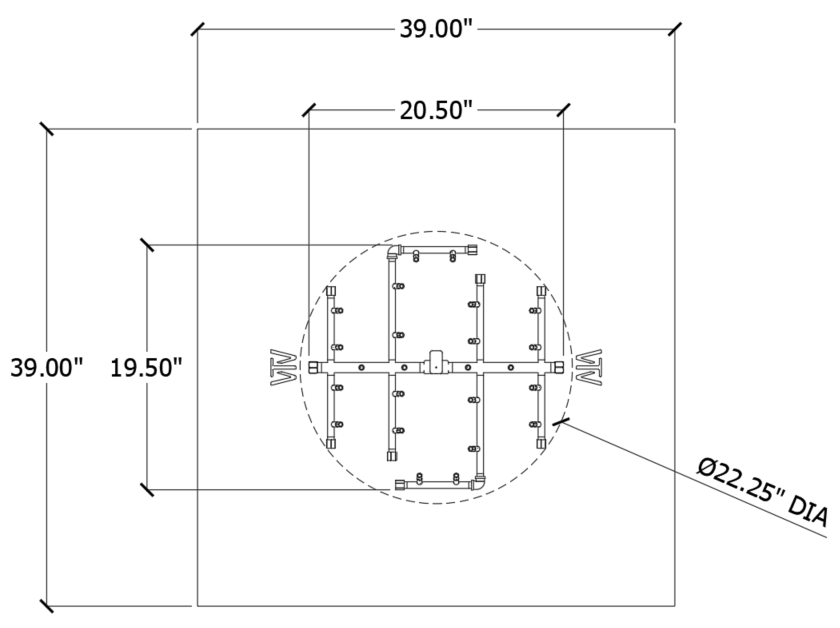

39″ – 42″ Square Opening
UPK240S39NG | UPK240S39LP
Includes:
- CFB240 Original Brass Burner with WATERSTOP
- 39” Square Aluminum Plate
- Flex Line / Key Valve Kit
- Key Valve Extension
- (7) Collars
RECTANGULAR OPENINGS

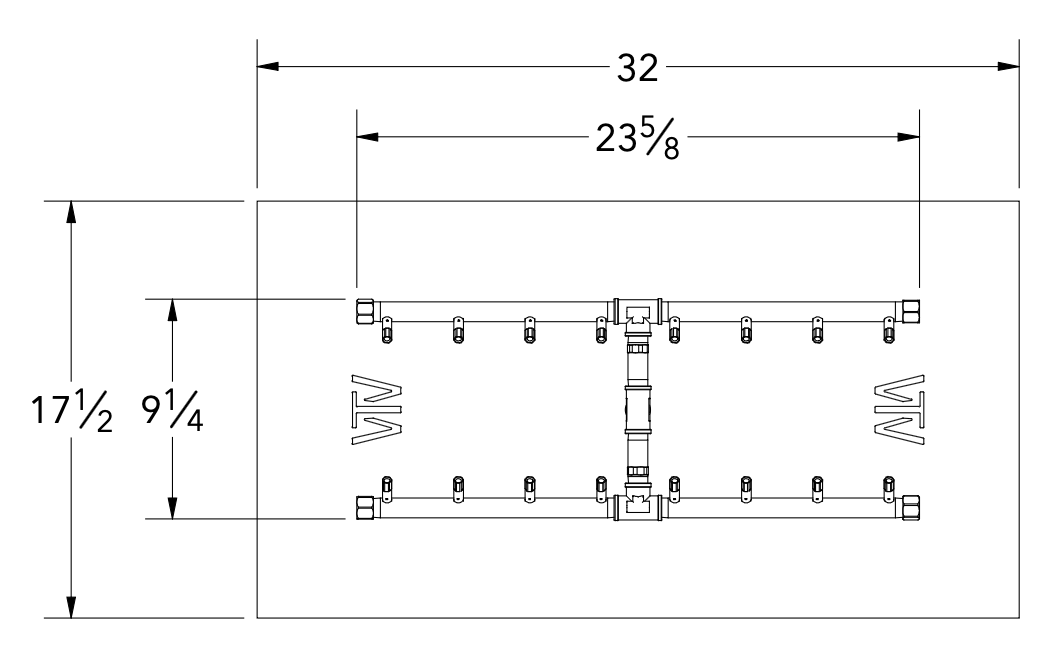

17 1/2″ – 20 1/2″ x 32″ – 35″ Rectangular Opening
UPK160H3217NG | UPK160H3217LP
Includes:
- CFBH160 H-Style Brass Burner with WATERSTOP
- 17 1/2″ x 32″ Rectangular Aluminum Plate
- Flex Line / Key Valve Kit
- 8″ Key Valve Extension
- (5) Collar
Light your Fire Feature with the simplicity of a match or choose a fully Automatic Ignition System.
SPECIALIZED GAS INSERT KITS
The All-New Specialized Gas Insert Kits fit top-selling paver fire pit brands and are easier to install than ever before! The Mounting Brackets and Collars have been re-engineered to eliminate the need for a drill to install. Each kit includes all components needed to create an exceptional fire feature including the patented CROSSFIRE® burner, aluminum plate, no-drill collars, specifically sized vents, and mounting bracket which replace a block while still offering support to the blocks above and a Flex Line/Key Valve Kit.

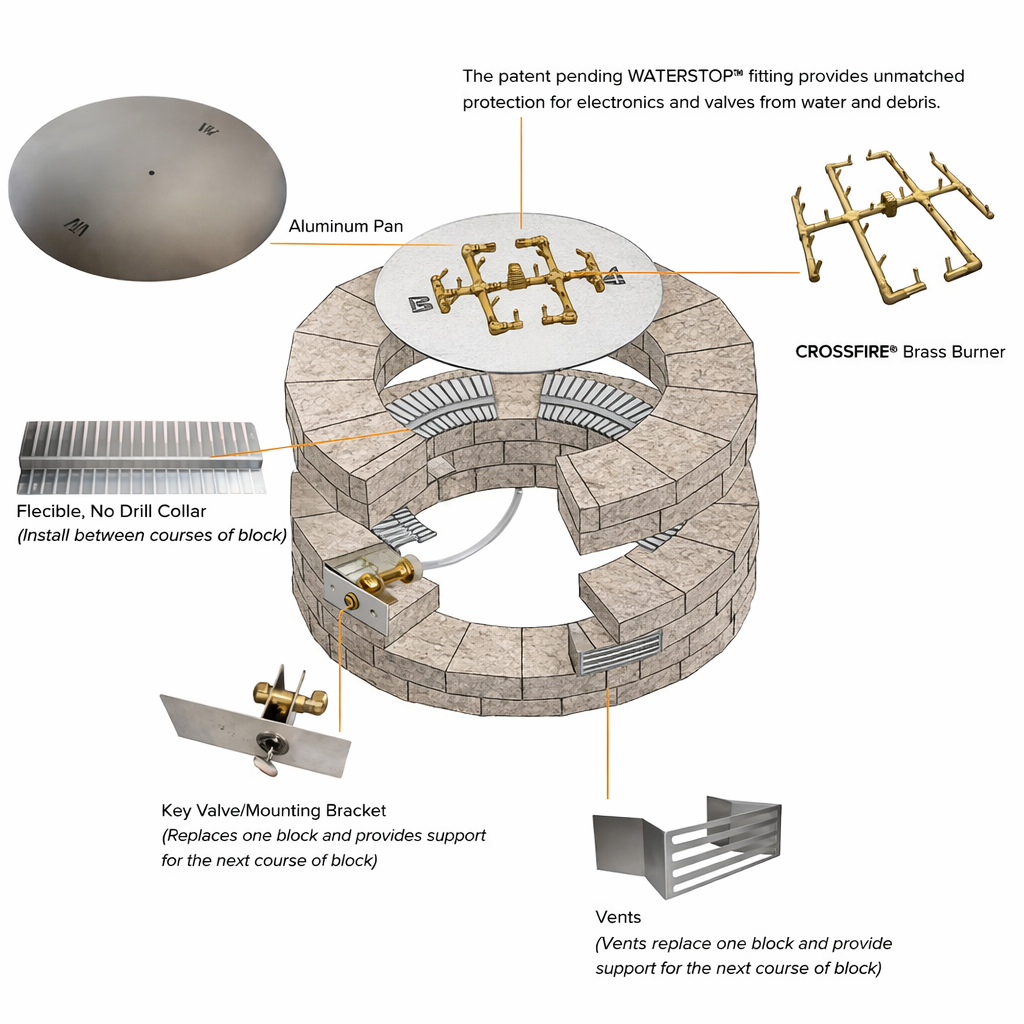

SPECIALIZED GAS INSERT KITS INCLUDE:
CROSSFIRE® Brass Burner
Aluminum Plate
Specifically-sized Mounting Bracket and Vents
Flexible, No Drill Collars
Flex Line/Key Valve Kit
Raffinato Block Kit and components pictured
Raffinato Block Kit and components pictured
The patent pending WATERSTOP® fitting provides unmatched protection for electronics and valves from water and debris.
Flexible, No Drill Collar
(Install between courses of block)
Key Valve/Mounting Bracket
(Replaces on block and provides support for the next course of block)

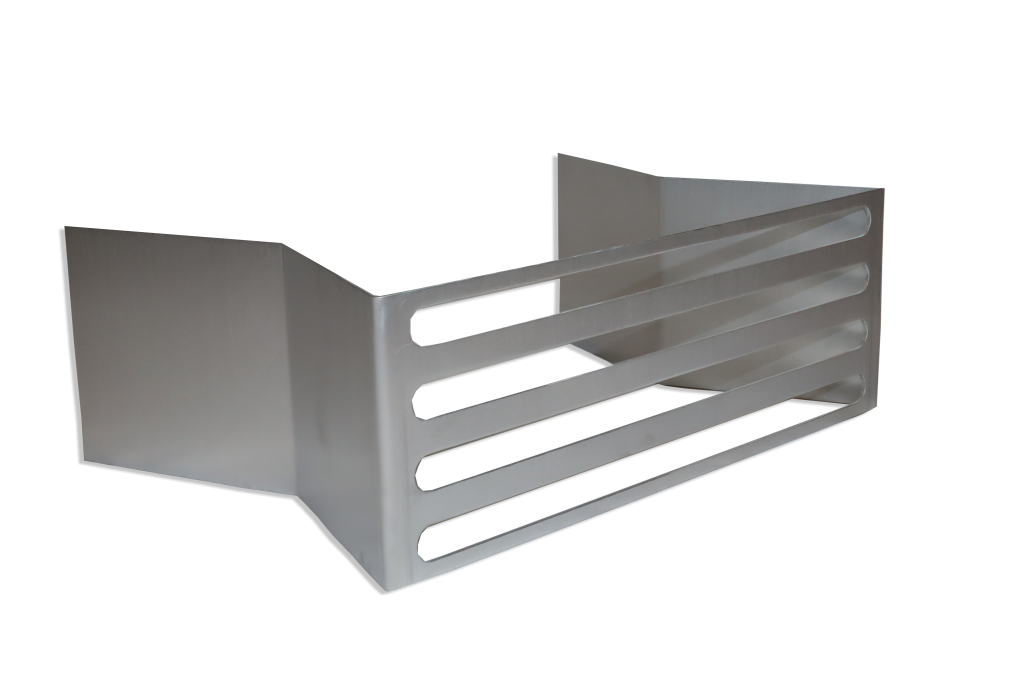

Vents
(Vents replace one block and provide support for the next course of block)
UNILOCK
Sunset Paver Feature Kits Gas Insert
104376 (NG) | 104377 (LP)
Includes:
- CFB240 Original Brass Burner with WATERSTOP®
- 35 1/2” Circular Aluminum Plate
- Flex Line / Key Valve Kit
- 8 5/8″ x 4″ Mounting Bracket
- (6) Flexible, No-Drill Collars
- (2) 8 5/8″ x 4″ Vents
KEYSTONE
Stonegate Fire Place Kit
X007 (NG) | X010 (LP)
Includes:
- CFBT230 Tree-Style Brass Burner with WATERSTOP
- 20″ x 8″ Rectangular Aluminum Plate
- KV12B Angled Threaded Key Valve
- Keystone Bracket
- Match Lit Ignition Kit
- FL3612, KEY12
HIGH FORMAT
Belvedere Gas Insert Kit
104312 (NG) | 104311 (LP)
Includes:
- CFB240 Original Brass Burner with WATERSTOP
- 36″ Circular Aluminum Plate + Aluminum Donut
- Flex Line / Key Valve Kit
- 11 1/8″ x 6″ Mounting Bracket
- (6) 19″ No-Drill Flat Collar 2″ Drop
- (2) 11 1/8″ x 6″ Vents
LOW COUNTRY
Palmetto Gas Insert Kit
104260 (NG) | 104259 (LP)
Includes:
- CFB240 Original Brass Burner with WATERSTOP
- 31 1/2″ Circular Aluminum Plate
- Flex Line / Key Valve Kit
- 8 5/8″ x 4″ Mounting Bracket
- (5) Flexible, No-Drill Collars
- (2) 8 5/8″ x 4″ Vents
TECHO-BLOC Valencia Gas Insert Kit
UPKVLNG | UPKVLLP
Includes:
- CFB180 Original Brass Burner with WATERSTOP
- 29″ Circular Aluminum Plate
- Flex Line / Key Valve Kit
- 9 1/4″ x 3″ Mounting Bracket
- (5) Flexible, No-Drill Collars
- (2) 9 1/4″ x 3″ Vents
TECHO-BLOC
Raffinato Gas Insert Kit
UPKRRNG | UPKRRLP
Includes:
- CFBH160 H-Style Brass Burner with WATERSTOP
- 32” x 17 3/4″ Rectangular Aluminum Plate
- Flex Line / Key Valve Kit
- 14″ x 3 1/2″ Mounting Bracket
- (5) Flexible, No-Drill Collars
- (2) 14″ x 3 1/2″ Vents
TECHO-BLOC
Brandon Gas Insert Kit
UPKBSNG | UPKBSLP
Includes:
- CFB180 Original Brass Burner with WATERSTOP
- 27 1/4″ Square Aluminum Plate
- Flex Line / Key Valve Kit
- 14″ x 3 1/2″ Mounting Bracket
- (6) Flexible, No-Drill Collars
- (2) 14″ x 3 1/2″ Vents
TECHO-BLOC
Prescott Gas Insert Kit
UPKPSNG | UPKPSLP
Includes:
- CFB180 Original Brass Burner with WATERSTOP
- 27 1/4″ Square Aluminum Plate
- Flex Line / Key Valve Kit
- 9″ x 4 1/2″ Mounting Bracket
- (6) Flexible, No-Drill Collars
- (2) 9″ x 4 1/2″ Vents
BELGARD
Weston Gas Insert Kit
UPKBWNG | UPKBWLP
Includes:
CFB240 Original Brass Burner with WATERSTOP
39″ Circular Aluminum Plate
Flex Line / Key Valve Kit
11 3/8″ x 4″ Mounting Bracket
(6) Flexible, No-Drill Collars
(2) 11 3/8″ x 4″ Vents
BELGARD
Country Gas Insert Kit
105012 (NG) | 105012 (LP)
Includes:
CFB180 Original Brass Burner
29″ Circular Aluminum Plate
Flex Line / Key Valve Kit
8 3/4″ x 4″ Mounting Bracket
(5) Flexible, No-Drill Collars
(2) 8 3/4″ x 4″ Vents
KEYSTONE
RumbleStone Gas Insert Kit
105009NG | 105010LP
Includes:
- CFB180 Original Brass Burner
- 30″ Circular Aluminum Plate
- Flex Line / Key Valve Kit
- 3 1/2″ x 9 3/4″ Mounting Bracket
- (5) Flexible, No-Drill Collars
- (2) 3 1/2″ x 9 3/4″ Vents

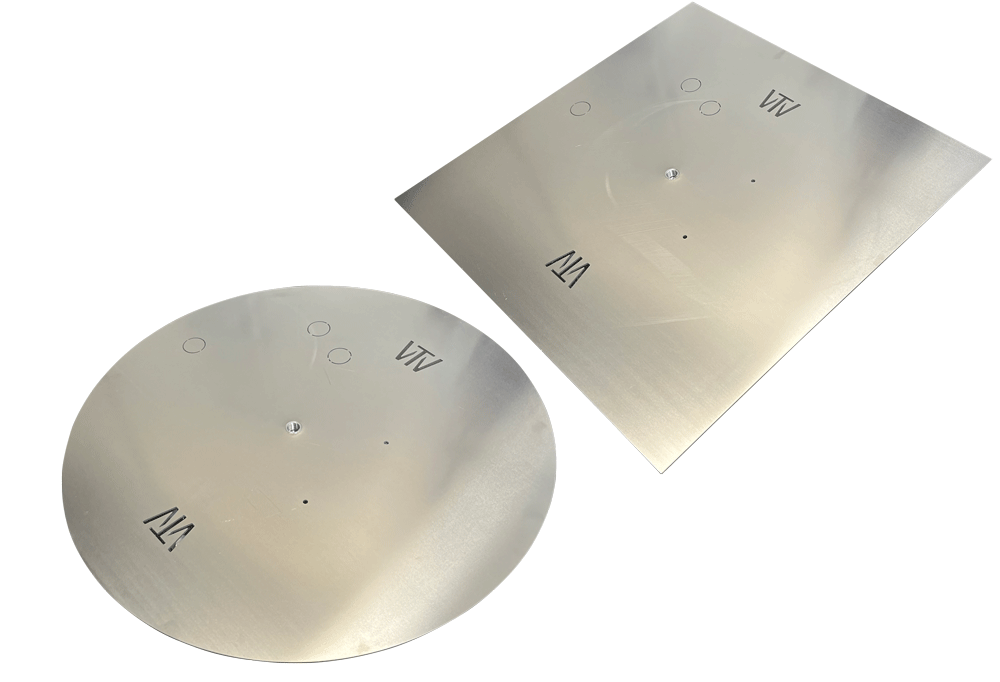

Standard and Custom Plate and Pan options.
